11

RF-UCPUCF

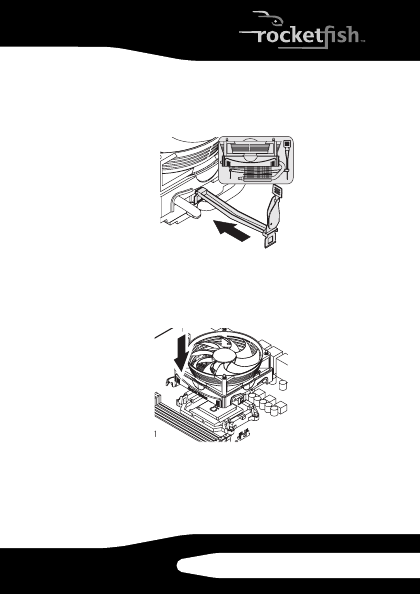

2 Slide the K8 retention bracket (L) into

the same slot so that it rests on the

metal plate.

3 Align the CPU cooler assembly over the

CPU, then gently lower the assembly

onto the system board.

08-1280_RF-UCPUCF - ENG.fm Page 11 Wednesday, June 11, 2008 3:43 PM
